351321/products/ADJ-1.htmADJ SeriesThis dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.Cup rim diameters: 2-1/2" to 3-1/25-3/8" Dia. X 22-9/16" LStainless steelAdjustment clipsUSA124.0012812483012018457524" L x 18" W x 24" H8124830187136" L x 6" W x 24" H4 oz. to 12 oz. cups (22 oz. paper)Cup Dispenser, adjustable, two springs (F & P), in-counter, rim dia. 2-1/2" - 3-1/2", ring bezel 5-3/8", cut-out 4", 22" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF4 oz to 12 oz. cups (22 oz. paper)Stainless steel cup dispenser - 22" Length - F & P springsPrecision spring steel adjustment mechanism (adjustable clips)Quick release stainless steel mounting collar for easy cleaningNSF listed60.5ADJ-1Cup rim diameters: 2-1/2" to 3-1/2"In-counter cup dispenser - 22" LADJ-1 In-counter cup dispenserThe ADJ-1 is the ideal dispenser for smaller cup sizes and tight spaces. This unit is designed to accommodate 4 oz. to 12 oz. paper, plastic or foam cups with rim diameters ranging in size from 2 1/2"–3 1/2". The ADJ-1 model requires a smaller 4" hole cut-out and is ideal for many retrofit applications. This model includes two compression springs and will work with all cups in a horizontal, angled or vertical mounting application. Dispenser has a standard under-counter length of 22". ADJ Series cup dispensers feature quality stainless steel construction. All models are NSF listed.In-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length10ADJ-1 | DISPENSE-RITEConstruction materialStainless steelCup or lid size4 oz. to 12 oz.Dispensing mechanismAdjustment clipsHousing typeMounting applicationIn-counterNapkin foldNapkin sizeNumber of accessory compartmentsNoneNumber of cup or lid dispensers1Product categoryCup DispensersProduct familyADJ SeriesProducts dispensedCupsSymbolsNSFUSA02016-02-23T08:39:13.520003513ADJ-1/products/ADJ-1.htmIn-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length

ADJ-1 In-counter cup dispenser

Click image to enlarge

  • ADJ-1.jpg12418Image

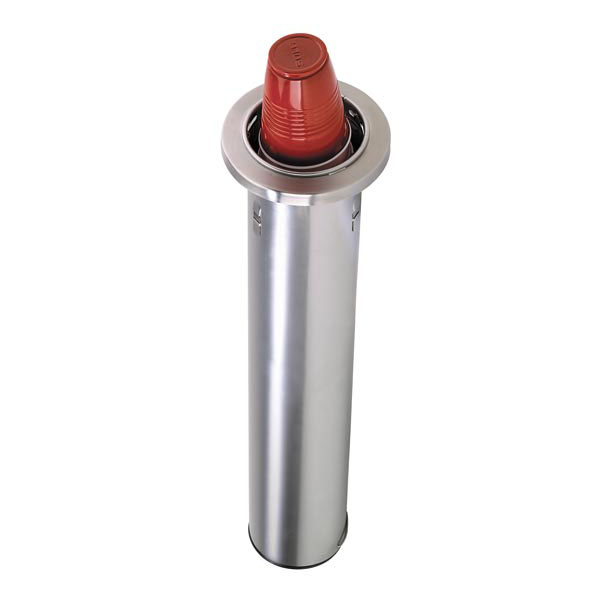

  • ADJ-1-upright.jpg32042Image

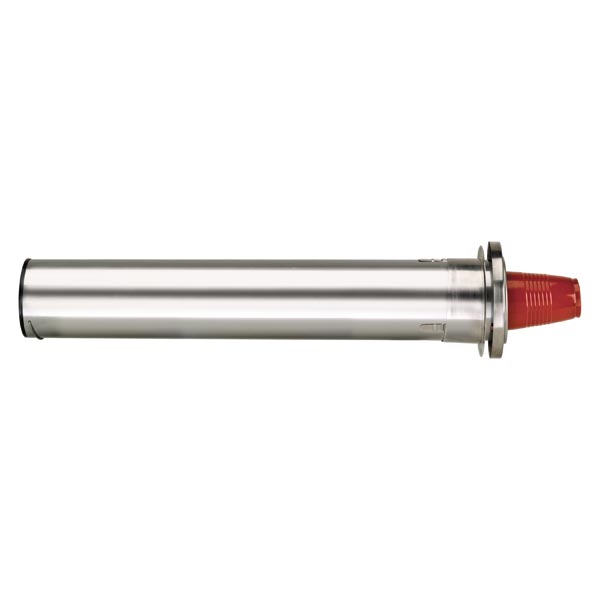

  • ADJ-1-side-view.jpg9432Image

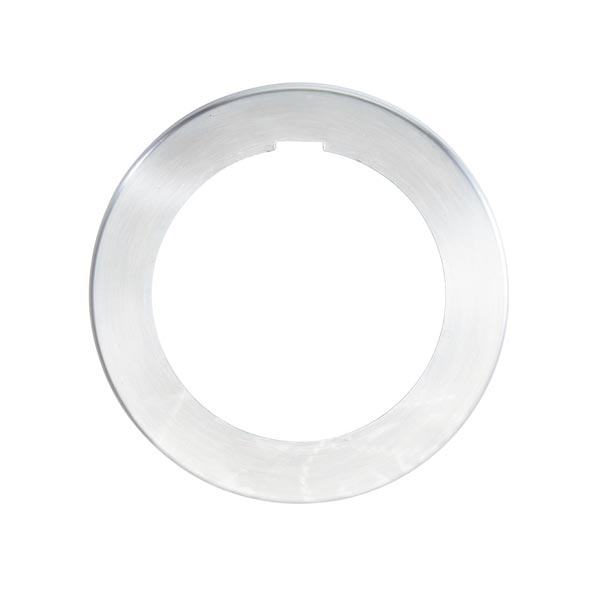

  • ADJ-1-ring-bezel.jpg10363Image
  • 143430715-teaser.jpg
  • 144055947-teaser.jpg

Model ADJ-1

In-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length
4 oz to 12 oz. cups (22 oz. paper)
Stainless steel cup dispenser - 22" Length - F & P springs
Precision spring steel adjustment mechanism (adjustable clips)
Quick release stainless steel mounting collar for easy cleaning
NSF listed
Cup rim diameters: 2-1/2" to 3-1/2"
Note:This dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.

Product Overview

The ADJ-1 is the ideal dispenser for smaller cup sizes and tight spaces. This unit is designed to accommodate 4 oz. to 12 oz. paper, plastic or foam cups with rim diameters ranging in size from 2 1/2"–3 1/2". The ADJ-1 model requires a smaller 4" hole cut-out and is ideal for many retrofit applications. This model includes two compression springs and will work with all cups in a horizontal, angled or vertical mounting application. Dispenser has a standard under-counter length of 22". ADJ Series cup dispensers feature quality stainless steel construction. All models are NSF listed.

Product Specifications

Model #:
ADJ-1
Product Family:
ADJ Series
Product Description:
In-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length
Product Dimensions:
5-3/8" Dia. X 22-9/16" L
Accommodates:
4 oz. to 12 oz. cups (22 oz. paper)
Other Specifications:
Cup Dispenser, adjustable, two springs (F & P), in-counter, rim dia. 2-1/2" - 3-1/2", ring bezel 5-3/8", cut-out 4", 22" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF
Construction Material:
Stainless steel
Dispensing Mechanism:
Adjustment clips
Country of Origin:
USA
Certifications:
NSF, USA,

Packaging Specifications

Case Quantity:
12
UPC Master Case:
812483012018
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
45
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483018713
Individual Carton Dimensions:
6" L x 6" W x 24" H
Individual Carton Cubic Feet:
0.5
